Brand: zhaoqizhou
Model Number: XRL1335F
Product Name: High-Power LED Lighting Module
Origin: guangdong，foshan
Warranty Period: 1 year
Description:
The XRL1335F LED Lighting Module is a high-performance lighting solution designed for a variety of applications, from automotive to industrial lighting needs. Utilizing premium LED chips from Osram and 1860 high-brightness LEDs, it delivers exceptional illumination with a powerful 33W output per pair (30W for the main light, 3W for the ambient light). With its versatile input voltage range of 10V to 80V DC, it can be easily integrated into various systems.
Description
Features:
High-Efficiency LEDs: The XRL1335F employs GW-CSHPM1.PM and GW-PUSRA1.PM LED chips, renowned for their high brightness, ensuring optimal lighting performance.
Adjustable Power Output: Each module operates at 33W (Headlight: 30W, Ambient Light: 3W), providing a balanced mix of main and auxiliary lighting.
Wide Voltage Compatibility: With an input voltage range of 10V to 80V DC, it's suitable for a wide array of electrical systems.
Color Temperature: The 5700K color temperature produces a bright, white light, ideal for clear visibility in various lighting conditions.
Durable Construction: The housing is made of ADC12 aluminum, with PC (polycarbonate) reflectors and covers, ensuring robustness and longevity. The mounting bracket is crafted from SUS304 stainless steel for enhanced durability.
Customizable Design: Choose from black or yellow face masks to match your aesthetic preferences or safety requirements.
IP67 Protection: Waterproof, dustproof, and vibration-resistant, the XRL1335F is built to withstand harsh environments and ensure reliable operation.
High Lumen Output: It boasts a raw lumen output of 3700 lumens and an efficiency lumen output of 2500 lumens, providing ample illumination.
Optimized Current Management: Operates at 2.5A@13.2V, ensuring efficient power usage and stable performance.
Broad Operating Temperature Range: Designed to function effectively in temperatures ranging from -40°C to 60°C, making it suitable for extreme weather conditions.
Long Service Life: With an expected lifespan of 50,000 hours, the XRL1335F offers long-term reliability and reduced maintenance costs.
Customizable Configuration: Available in various combinations from 1 to 12 units, allowing you to tailor the lighting setup to your specific requirements.

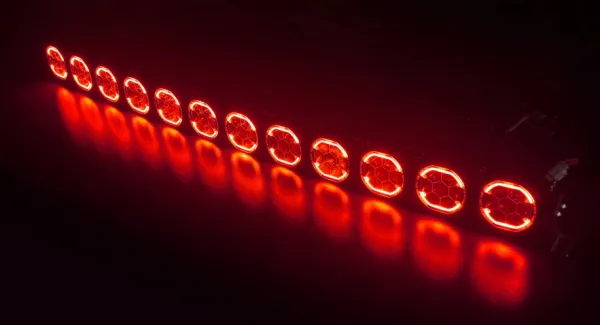

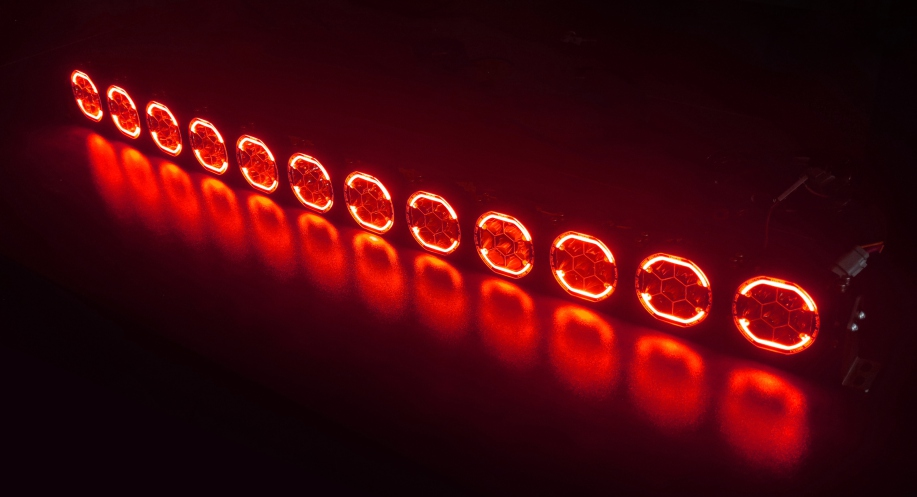

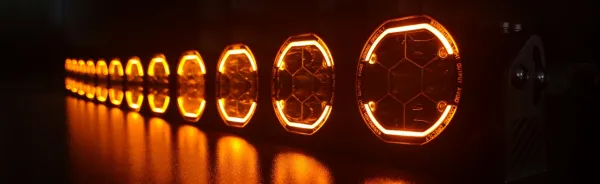

Ambient Light Color Options: The main light source emits white light, while the ambient light can be selected in yellow or red, enhancing the visual appeal and functionality of the lighting setup.
The XRL1335F LED Lighting Module is a robust and adaptable lighting solution, ideal for demanding applications that require high brightness, durability, and energy efficiency. Whether you're outfitting vehicles, enhancing industrial lighting systems, or upgrading outdoor lighting, the XRL1335F delivers the performance and reliability you need.
